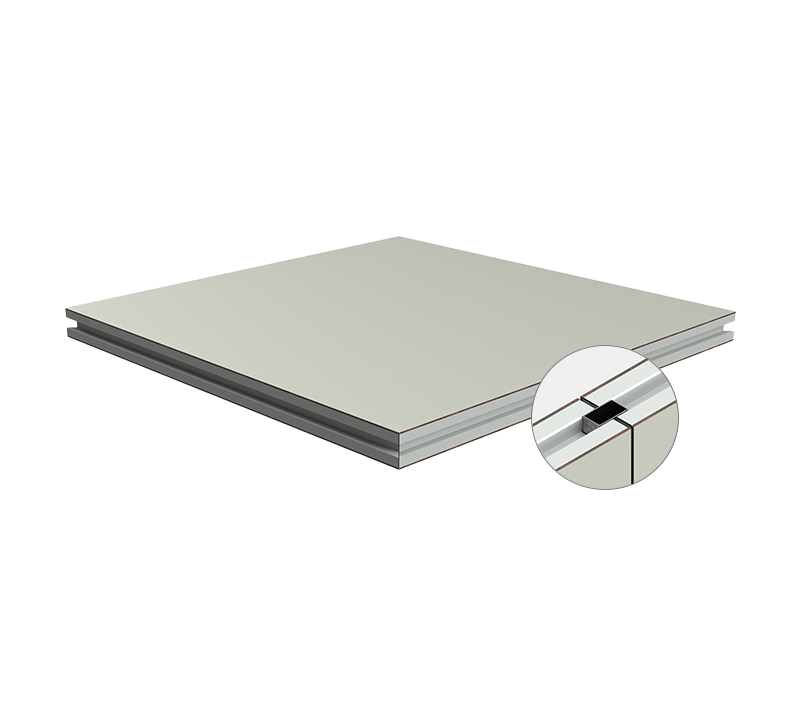

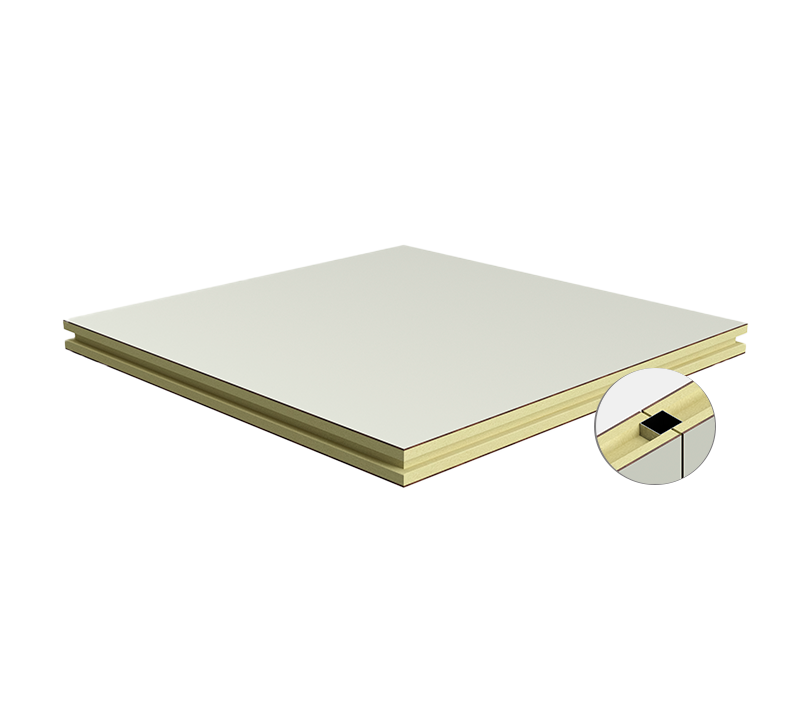

EST HONEY® with ALU PROFILE

EST HONEY® with ALU PROFILE

DESCRIPTION

  • Face A 3-mm thick HPL-board
  • Insulating Material Alu honeycomb – 27 kg/m3
  • Face B 3-mm thick HPL-board
  • Overall Thickness 56 mm
  • Net Width 1.290 mm
  • Max. Length 3.040 mm

FIRE RATING

  • Reaction to Fire PND

WEIGHT

Thickness Weight
mm kg/m2
56

dmw:  27 kg/m3
HPLin/out: 3 mm

U-VALUE

Thickness (mm) U (W/m2·k)
56

dmw:  27 kg/m3
HPLin/out: 3 mm

MECHANICAL STRENGTH

MAXIMUM SPAN (m)
 Thickness (mm) Load (kg/m2)
80 100 120 150 180
56

Pannel installation: On 2 supports
HPL thickness in/out: 3 mm
Density of core: 27 kg/m3
Deflection: L/200

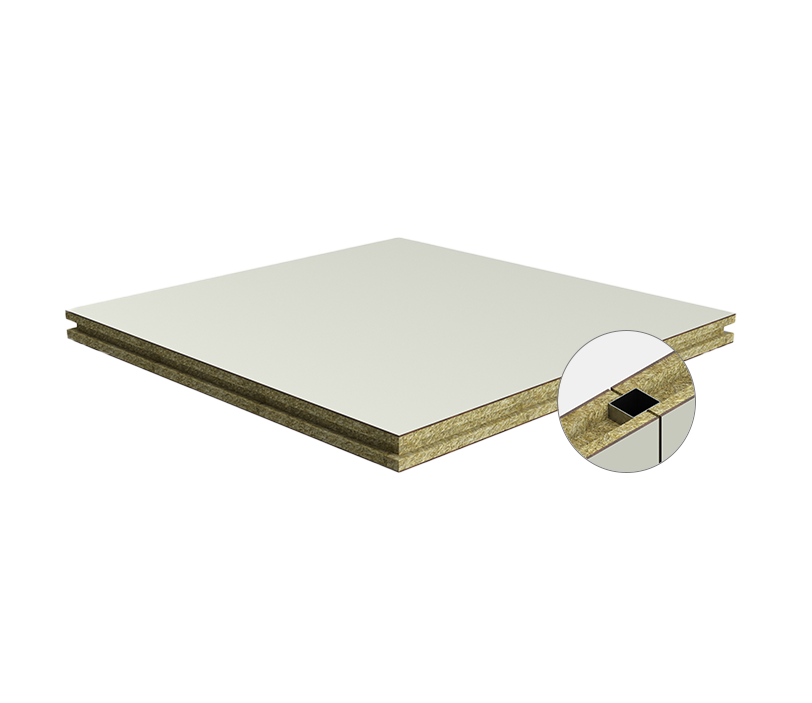

EST ROC® with ALU PROFILE

EST ROC® with ALU PROFILE

DESCRIPTION

  • Face A 3-mm thick HPL-board
  • Insulating Material Mineral wool – 150 kg/m3
  • Face B 3-mm thick HPL-board
  • Overall Thickness 56 mm
  • Net Width 1.290 mm
  • Max. Length 3.040 mm

FIRE RATING

  • Reaction to Fire PND

WEIGHT

Thickness Weight
mm kg/m2
56 17,1

dmw:  150 kg/m3
HPLin/out: 3 mm

U-VALUE

Thickness (mm) U (W/m2·k)
56 0,73

dmw:  150 kg/m3
HPLin/out: 3 mm

MECHANICAL STRENGTH

MAXIMUM SPAN (m)
 Thickness (mm) Load (kg/m2)
80 100 120 150 180
56

Panel installation: On 2 supports
HPL thickness in/out: 3 mm
Density of mineral wool: 150 kg/m3
Deflection: L/200

LAB THERM® with ALU PROFILE

LAB THERM® with ALU PROFILE

DESCRIPTION

  • Face A 0,5 to 0,8-mm thick steel – Pre-painted, SS, PVC, PET
  • Insulating Material EPS/XPS
  • Face B 0,5 to 0,8-mm thick steel – Pre-painted, SS, PVC, PET
  • Thickness 50 mm
  • Net Width 1.200 mm
  • Finishing Flat

FIRE RATING

  • Reaction to Fire B-s2, d0

WEIGHT

Thickness Weight (kg/m2)
mm EPS XPS
50 12,4 12,9

dsteel: 8000 kg/m3
dEPS: 20 kg/m2   dXPS: 30/kg/m2
steel thicknessin/out: 0,6 mm

U-VALUE

Thickness (mm) U (W/m2·k)
50 0,65

dsteel: 8000 kg/m3
dEPS: 20 kg/m2   dXPS: 30/kg/m2
steel thicknessin/out: 0,6 mm

MECHANICAL STRENGTH

MAXIMUM SPAN (m)
 Thickness (mm) Load (kg/m2)
80 100 120 150 180
50

Panel installation: On 2 supports
HPL thickness in/out: 3 mm
Density of EPS/XPS: 30 kg/m3
Deflection: L/200

Steels, Colours and Finishing
  • Steels, Colours and Finishing
  • Steels, Colours and Finishing
  • Steels, Colours and Finishing

Steels, Colours and Finishing

AVAILABLE STEEL AND COLOURS





Steels and Colours (Spanish code and RAL)  – Other options available upon request

Imagen Negro Dextar RAL 90050000 Negro Dextar Imagen Blanco Ostra RAL 90021000 Blanco Ostra Imagen Blanco Pirineo RAL 90101006 Blanco Pirineo Imagen Arena RAL 10022000 Arena
Imagen Crema bidasoa RAL 1015 2002 Crema Bidasoa Imagen Verde Navarra 60283000 Verde Navarra Imagen verde claro RAL 60193001 Verde Claro Imagen Azul Lago 50194000 Azul Lago
Imagen Gris Perla RAL 70325001 Gris Perla Imagen Silver Metallic RAL 90065023 Silver Metallic Imagen Rojo Teja RAL 30117001 Rojo Teja Imagen Rojo Baztán RAL 30057002 Rojo Baztán
Imagen Rojo Coral RAL 30007004 Rojo Coral RAL 9010 White RAL 9010
Acero galvanizado
Resultado de imagen de stainless steelStainless Steel

Available finishing

PET, PVC, PVDF, HDX, ANTIBACTERIAL

Perforated Cubrigrec Roc (sp)

Perforated Cubrigrec Roc (sp)

Panel Composition

  • Face A 0,5 to 0,7 mm. thick lacquered steel sheet
  • Core Rockwool
  • Face B 0,5 to 0,7 mm. thick perforated steel sheet
  • Thickness from 40 to 150 mm.
  • Net width 1050 mm.
  • Finishing Smooth and shaped

Fire Classification

  • Reaction to fire A2-s1, d0
  • Fire resistance EI 60 (Thickness,e = 60 mm.)
    EI 180 (Thickness,e = 100 mm.)

Panel specifications

Thickness Weight (kg/m2)
mm Kg/ml Kg/m2
50 15,7 14,9
60 16,9 16,1
80 19,4 18,5
100 21,9 20,9
150 28,2 26,9

dac: 8000 kg/m3
?lr: 120 kg/m3 (LD)
steel sheet thickness ext/int: 0,5 mm.
steel sheet thickness ext/int: 0,5 mm. (perf.: 24,9%)

Thermal transmittance

Thickness (mm) U (W/m2·k)
50 0,66
60 0,56
80 0,44
100 0,35
150 0,24

dac: 8000 kg/m3
?lr: 120 kg/m3
steel sheet thickness ext/int: 0,5 mm.

Mechanical results

Distance between supports
Load (kg/m2)
Thickness (mm) 80 100 120
50 2,20 1,80 1,60
100 2,30 1,96 1,74
150 2,50 2,20 1,85

Panel placing method: On two supports
Values in the table are calculated under the following conditions:
· Steel sheet thickness inside/outside.: 0,5 mm. (24,9% perforation)
· Core density: 120 kg/m3
· Temperature conditions in./out.: 65ºC / 25ºC
· Safety factor applied: ?G: 1,35 / ?Q: 1,5 / ?T: 1,5 / ?C: 1 / ?M: 1,1
· Supports widht: 150 mm
· Deflection: L/200

Data obtained from tests according to UNE-EN 14509:2007 / AC: 2009

Steel Finishings
  • Steel Finishings
  • Steel Finishings
  • Steel Finishings

Steel Finishings

FLAT FINISHING

Perfilado LISO

MINI-BEAD FINISHING

CONFORMADO1



MICRO-BEAD FINISHING

Perfilado MICROPERFILADO

FRIGOPOL® ALU
  • FRIGOPOL® ALU

FRIGOPOL® ALU

Panel composition

  • Face A 1,2, 1,5 and 2,3-mm thick polyester sheet
  • Insulating Material EPS
  • Face B 0,05-mm thick aluminum sheet
  • Thickness 20 mm
  • Net Width 1.190 mm
  • Finishing Flat and embossed

WEIGHT

Thickness Weight (kg/m2)
mm kg/m2
20 4,5

dpol: 1550 kg/m3, dalu: 2700 kg/m3
dEPS: 20 kg/m3
thicknesspoliéster/alu: 1,5 mm/0,05 mm

U-VALUE

Insulating Material Thickness (mm)
20
EPS 1,24

Remarks: tested sample with 1,5-mm thick polyester sheet and 0,05-mm thick alu sheet

FRIGOPOL®
  • FRIGOPOL®

FRIGOPOL®

DESCRIPTION

  • Face A 1,2, 1,5 and 2,3-mm thick polyester sheet
  • Insulating Material XPS/EPS
  • Face B 1,2, 1,5 and 2,3-mm thick polyester sheet
  • Thickness From 30 to 200 mm
  • Net Width 1.190 mm
  • Finishing Flat and embossed

WEIGHT

Thickness Weight (kg/m2)
mm kg/m2
30 5,3
50 5,7
60 5,9
80 6,3

dpol: 1550 kg/m3

dEPS: 20 kg/m3

polyesterin/out: 1,5 mm

U-VALUE

Insulating Material Thickness (mm)
30 40 50 60 80 100 120 140 150 160 180 200
EPS 0,99 0,78 0,64 0,54 0,42 0,34 0,28 0,25 0,23 0,22 0,19 0,17
XPS 0,95 0,78 0,64 0,54 0,42 0,34 0,28 0,25 0,23 0,22 0,19 0,17

Remarks: tested sample with 1,5 mm- thick polyester sheet



MECHANICAL STRENGTH

MAXIMUM SPAN (m)
Thickness (mm) Load (kg/m2)
80 100 120
50 2,85 2,75 2,60
100 5,30 4,80 4,40
150 6,25 5,60 5,10

Panel placing method: On two supports
Values in the table are calculated under the following conditions
· Polyester thickness inside/outside.: 1,5 mm
· Core density: 20 kg/m3
· Temperature conditions in./out.: 65ºC / 25ºC
· Safety factor applied: ?W: 1,5 / ?T: 1,5 / ?: 0,6
· Supports widht: 60 mm
· Deflection: L/200

Data obtained from tests according to UNE-EN 14509:2007 / AC: 2009

MODULPAN THERM® (Frigo)
  • MODULPAN THERM® (Frigo)

MODULPAN THERM® (Frigo)

DESCRIPTION

  • Face A 0,5 to 0,6-mm thick pre-painted steel
  • Insulating Material XPS/EPS
  • Face B 0,5 to 0,6-mm thick pre-painted steel
  • Thickness From 40 to 150 mm
  • Net Width 1.150 mm
  • Finishing Flat, mini-bead and micro-bead

FIRE CLASSIFICATION

  • Reaction to Fire B-s2, d0
  • Fire Resistance Not declared

WEIGHT

Thickness Weight (kg/m2)
mm EPS XPS
50 11,4 11,9
60 11,6 12,2
80 12,0 12,8
100 12,4 13,4
120 12,8 14,0
150 13,4 14,9

dsteel: 8000 kg/m3

dEPS: 20 kg/m2   dXPS: 30/kg/m2
steel thicknessin/out: 0,6 mm

U-VALUE

Thickness (mm)
Insulating Material 30 40 50 60 80 100 120 140 150 160 180 200
EPS 1,19 0,91 0,73 0,60 0,44 0,35 0,29 0,25 0,23 0,22 0,20 0,18
XPS 1,13 0,91 0,73 0,60 0,44 0,35 0,29 0,25 0,23 0,22 0,20 0,18



MECHANICAL STRENGTH

MAXIMUM SPAN (m)
Load (kg/m2)
Thickness (mm) 80 100 120
50 2,85 2,75 2,60
100 3,90 3,60 3,40
150 5,80 5,20 4,70

Panel installation: On 3 or more supports
Steel thickness in/out: 0,5 mm
Density of EPS: 20 kg/m3
Deflection: L/200

FRIGOPAN® MULTILAMINAR
  • FRIGOPAN® MULTILAMINAR

FRIGOPAN® MULTILAMINAR

DESCRIPTION

  • Face A 0,5 to 0,6-mm thick pre-painted steel
  • Insulating Material Mineral wool +  XPS/EPS
  • Face B 0,5 to 0,6-mm thick pre-painted steel
  • Thickness From 40 to 240 mm
  • Net Width 1.150 mm
  • Finishing Flat, mini-bead and micro-bead

WEIGHT

Thickness Weight (kg/m2)
mm kg/m2
LR40 + EPS30 7,3
LR40 + GRF30 7,3
LR40 + XPS30 7,5

dsteel: 8000 kg/m3 , dmw: 120 kg/m3dEPS: 20 kg/m3, dXPS: 30 kg/m3
steel thicknessin/out: 0,5 mm

U-VALUE

Thickeness (mm)
Core 30 40 50 60 80 100 120 140 160
LR(LD) 40 mm + EPS 0.49 0.43 0,39 0,35 0,29 0,25 0,22 0,20 0,18
LR(HD) 40 mm + EPS 0,52 0.45 0,40 0,36 0,30 0,26 0,22 0,20 0,18
LR(LD) 40 mm + XPS 0.48 0,43 0,39 0,35 0,29 0,25 0,22 0,20 0,18
LR150 kg/m3 40 mm + XPS 0.50 0,45 0,40 0,36 0,30 0,26 0,22 0,20 0,18

Remarks: tested sample with 0,5 mm- thick steel
